Automatic Tube Cleaning System for Chillers
Phone Number eg. +91 88888888889
Maintain the heat exchanger in your HVAC system at peak efficiency at all times.
Water-based cooling systems are inevitably plagued by fouling of the heat exchanger surfaces, resulting in decreased efficiency, increased energy consumption, and higher operating costs. According to research, a 0.6mm scale layer on condenser tubes reduces chiller heat transfer efficiency by 34% and increases energy consumption by 21%.
The EnerGeo™ make Anti-Fouling Condenser System (AFCS)™ is a one-of-a-kind automatic tube cleaning system that operates continuously to keep heat exchanger surfaces completely clean.
As a result, operating capacity and efficiency are always kept at peak levels, lowering overall energy consumption. Furthermore, there is no need for the HVAC system to be shut down on a regular basis for costly and time-consuming chemical cleaning.
The Benefits
The chiller operates at optimum efficiency all of the time, resulting in lower energy consumption and operation costs.
Enhances the tube life and chiller operates at lower head pressure.
The automatic tube cleaning system keeps the condenser tubes clean while the chillers are in operation.
The only consumables that need to be replaced in the automatic tube cleaning system are the sponge balls.
Water treatment is only required to prevent scaling of ancillary equipment, resulting in cost savings of up to 50% of the cost of water treatment chemicals.
No chemicals are used in the automatic tube cleaning system.

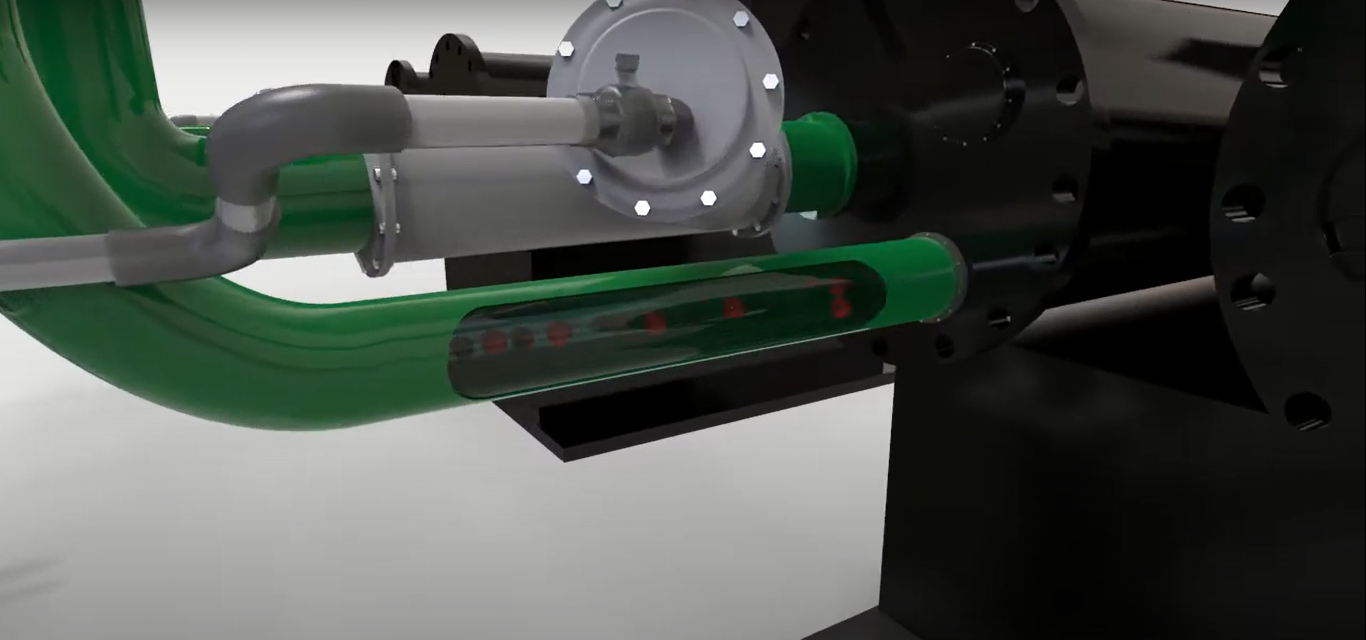

1. Water rushes into the ball injector when the injection valve is opened, flushing sponge cleaning balls into the flow of condensing water.

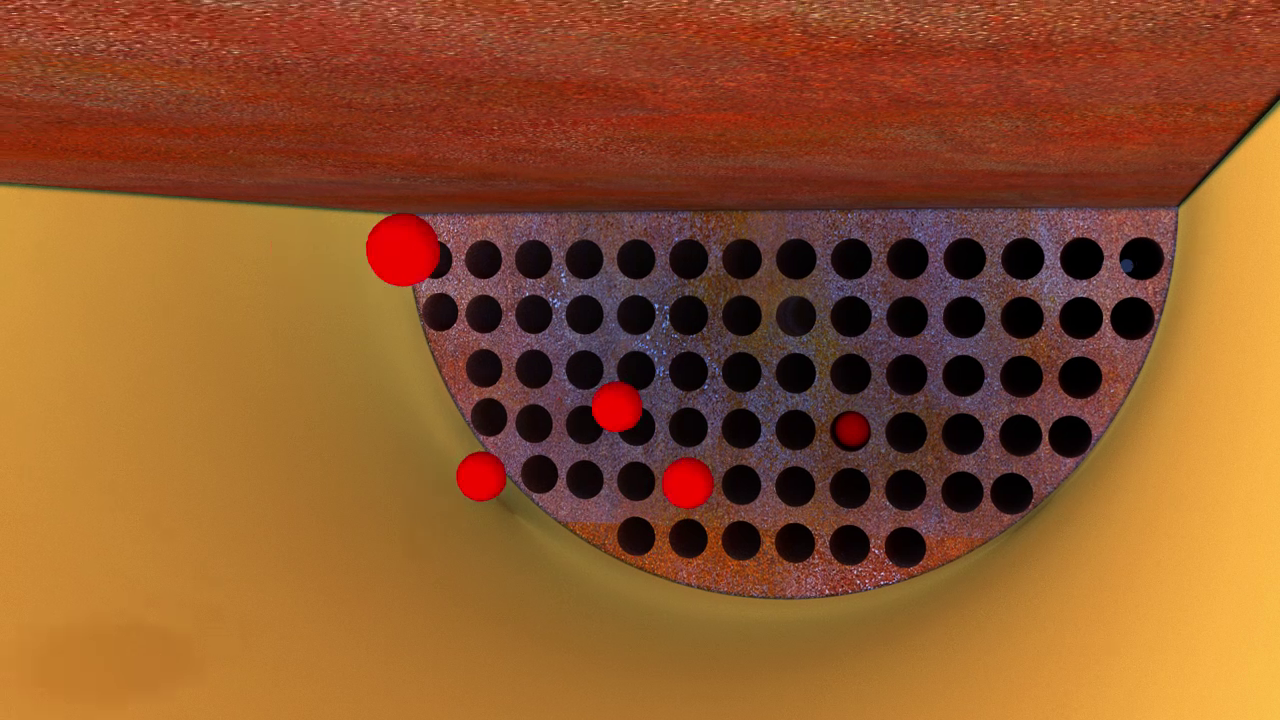

2. The sponge balls are carried into the condenser by the water. The balls scour off scale and fouling from the condenser tubes as they pass through it.
3. When the balls exit the condenser, they are caught by the ball trap.
4. For a few seconds, the drain valve opens, and the balls are sucked back into the injector. Water turbulence cleans the balls as they enter the injector, and the clean balls are held until the next cleaning cycle begins.
About Us
About EnerGeo™
We at EnerGeo™ provides HVAC solutions with a 360° approach. We are manufacturers of Energy Efficiency Products (Anti-Fouling Condenser System (AFCS)™ a high performance Automatic Tube Cleaning System for Chillers, Electro-Chemical treatment System (ECTS)™ for non-chemical cooling tower water, and Intelligent Adiabatic Cooling System (iACS)™ for Air-Cooled Chillers) for HVAC Chiller Plant Rooms. EnerGeo™ is your ideal technology partner with guaranteed performance and payback in retrofit and Greenfield projects.
